LTC3853-Slide5

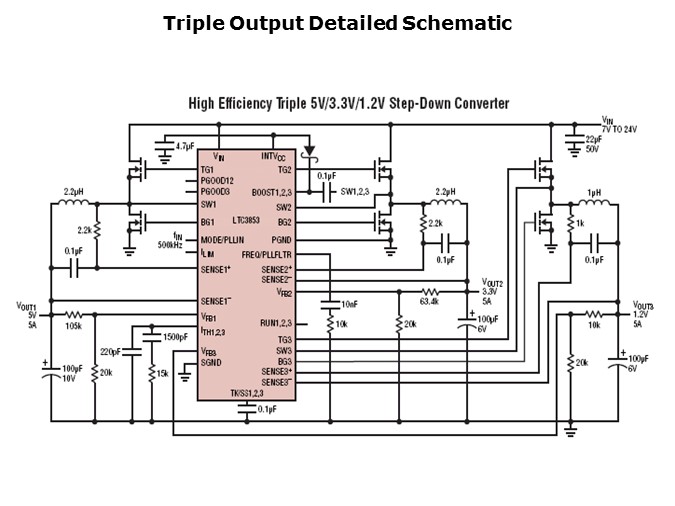

This schematic shows all the parts required for a complete triple output DC-to-DC switching regulator power supply. Analog Devices can also provide a detailed schematic, the Gerber files for the PCB layout, the bill-of-materials, and a spice model for simulations.
