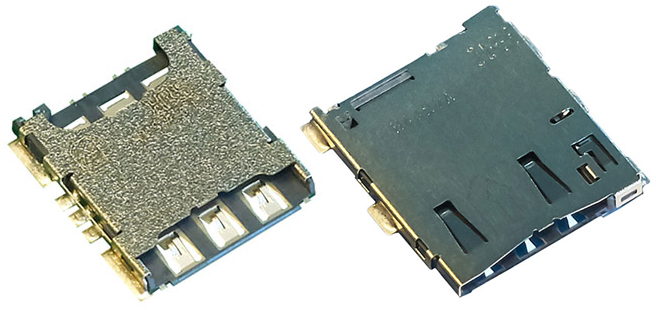

            KP13B/KP13C Series Low-Profile Nano Sim Card Connectors
                    Hirose's KP13 series nano SIM cards reduce required PCB mounting space to enable smaller consumer electronic designs


Hirose's KP13B and KP13C series of low-profile nano SIM card connectors reduce the required printed circuit board (PCB) mounting space. The space-saving connectors simplify designs in consumer electronics such as digital cameras, digital video cameras, laptops, printers, smartphones, televisions, and more.

Features

User-friendly ejection features

KP13C: push/pull ejection type
KP13B: push/push ejection type

Low-profile design

KP13C: 1.12 mm
KP13B: 1.18 mm

Reduces the required mounting space compared to other products on the market
Enables development of smaller consumer electronic designs

Card detection features

KP13C: does not include card detect switch
KP13B: includes card detect switch

Incorrect card insertion mechanism ensures proper mating
Contacts protected from damage via a double contact design (KP13C)
Exposed terminal design simplifies examination of the connector contacts via automated optical inspection
